Rotio 減速比: i=3:1~4096:1
Output torque 輸出轉矩: Up to 1030N.m
Frame size 機座型號: PF40~PF142

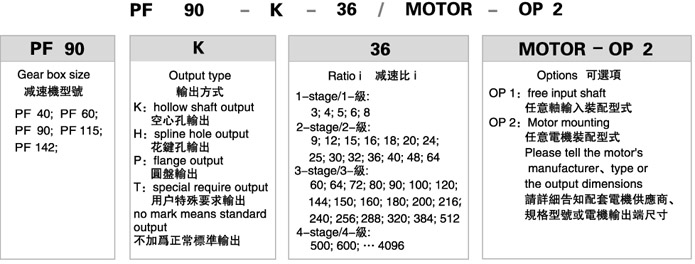

| PF SERIES PRECISION PLANETARY GEAR BOXES ORDERING CODE |
| PF系列精密行星減速機訂貨代碼/型號標注 |

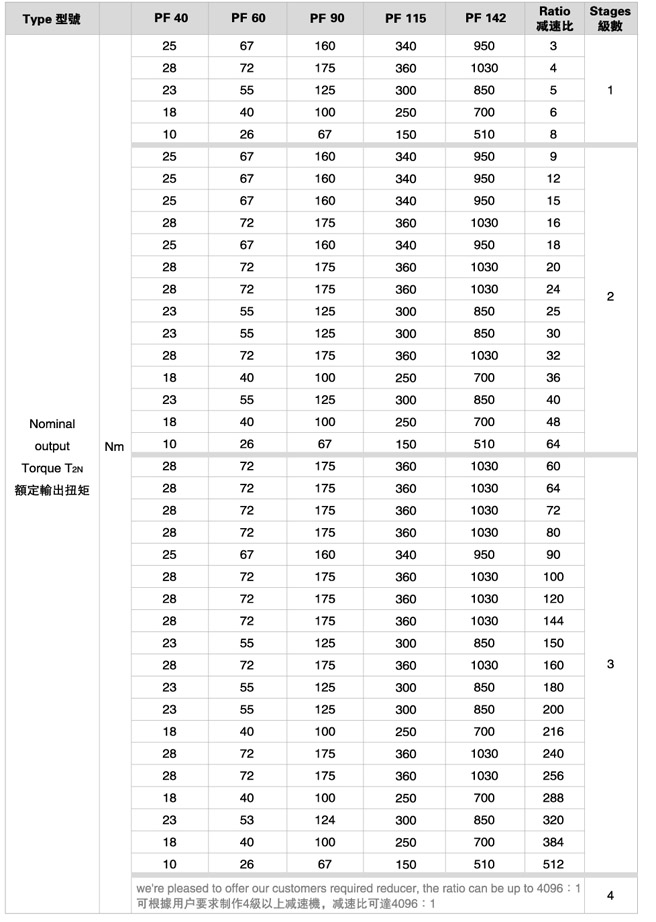

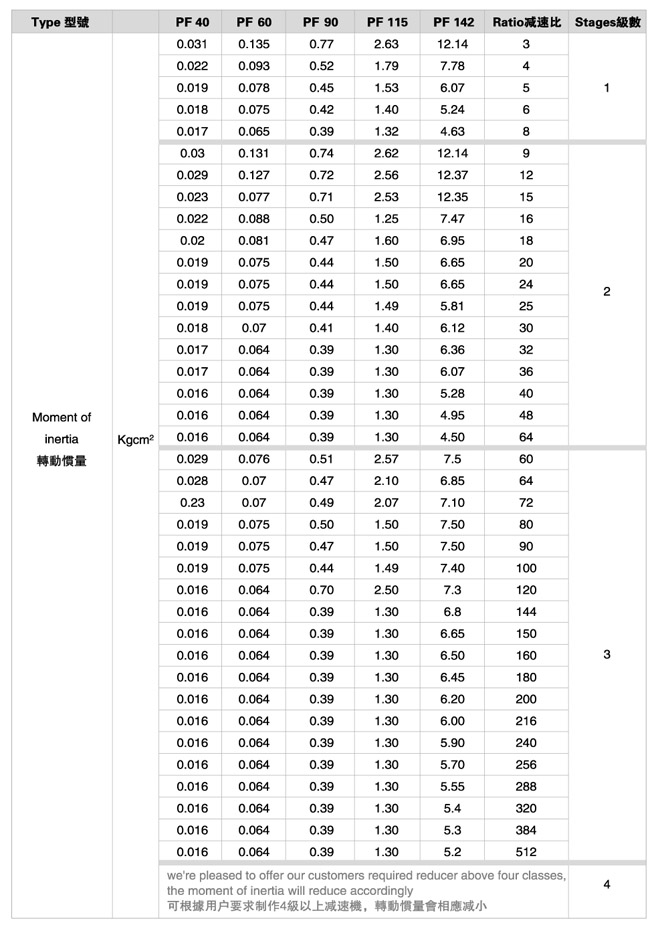

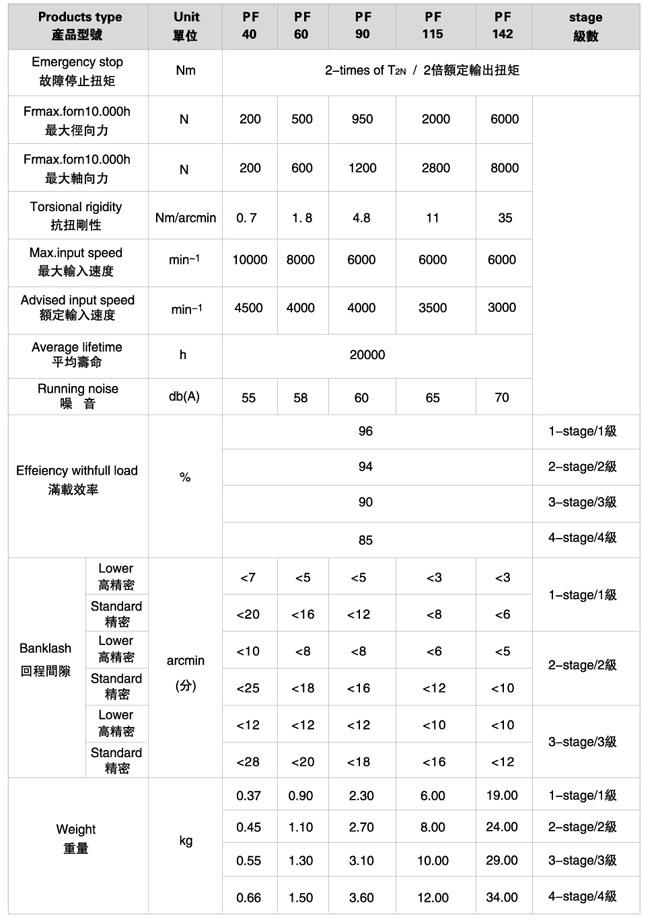

| PF SERIES PRECISION PLANETARY GEAR BOXES TECHNICAL DATA |
| PF系列精密行星減速機技術參數 |

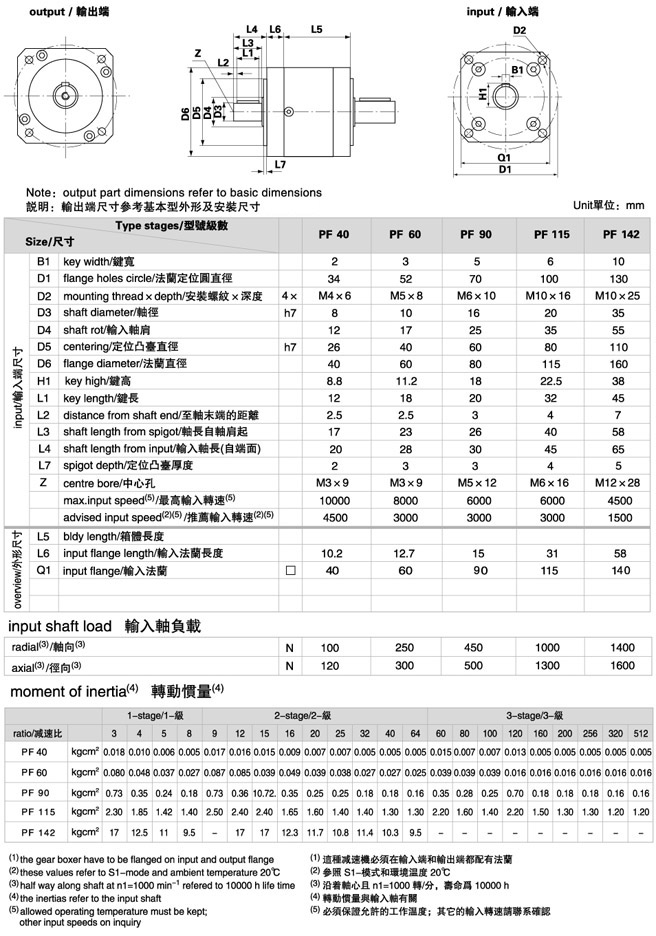

| PF SERIES PRECISION PLANETARY GEAR BOXES BASIC DIMENSIONS |
| PF系列精密行星減速機基本外形及安裝尺寸 |
 |

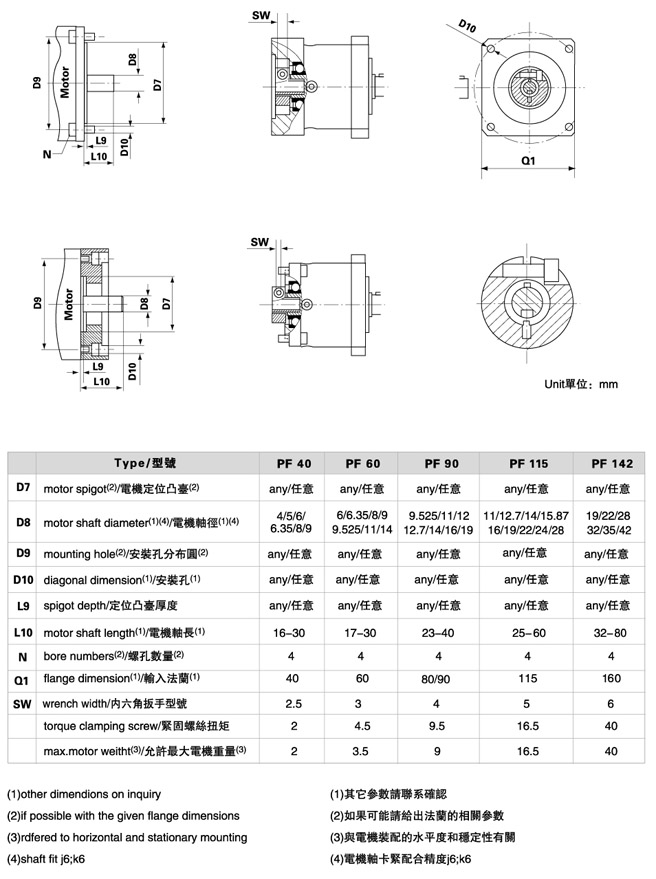

| PF/OP2 SERIES PRECISION PLANETARY GEAR BOXES DIMENSIONS |
| PF/OP2 任意電機輸入型式減速機外形安裝尺寸 | |
 |

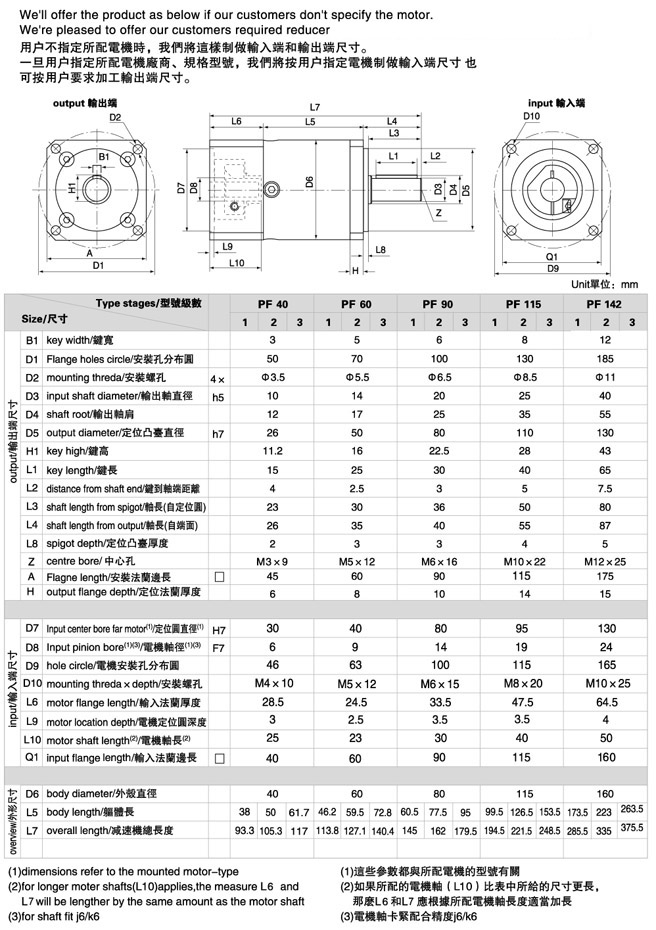

| PF/OP1 SERIES PRECISION PLANETARY GEAR BOXES DIMENSIONS |
| PF/OP1 任意輸入型式減速機外形及安裝尺寸 | |
 |

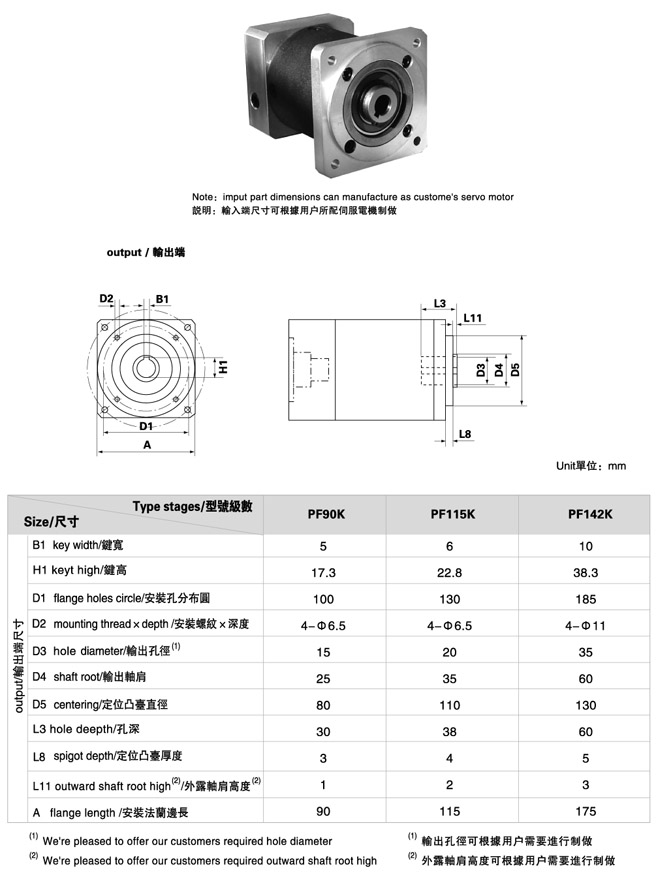

| PF□K hollow shaft gear boxes dimensions |
| PF□K空心輸出型減速機外形及安裝尺寸 |
|
